TeeJet

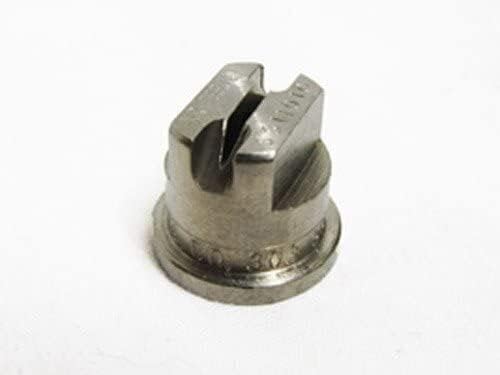

XR11010SS — XR TeeJet Tip, Stainless Steel
XR11010SS — XR TeeJet Tip, Stainless Steel
Regular price
$7.18 USD
Regular price
$13.81 USD
Sale price
$7.18 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “XR11010SS — XR TeeJet Tip, Stainless Steel” — fitment, alternatives, or what else you need
XR11010SS extended range flat spray tip, 110° spray angle, 1.0 GPM at 40 PSI, stainless steel construction. General-purpose broadcast flat spray tip for contact herbicides, fungicides, and insecticides, producing medium-to-coarse droplets. For agricultural boom sprayer application.
Application Rates
Capacity and application rates for the XR11010 tip from TeeJet Catalog 51A (rated pressure range 15–60 PSI). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 15 | VC | 0.61 | 78 | 45 | 36 | 30 | 23 | 18.1 | 15.1 | 12.1 | 9.1 |
| 20 | C | 0.71 | 91 | 53 | 42 | 35 | 26 | 21 | 17.6 | 14.1 | 10.5 |
| 30 | C | 0.87 | 111 | 65 | 52 | 43 | 32 | 26 | 22 | 17.2 | 12.9 |
| 40 | M | 1.00 | 128 | 74 | 59 | 50 | 37 | 30 | 25 | 19.8 | 14.9 |
| 50 | M | 1.12 | 143 | 83 | 67 | 55 | 42 | 33 | 28 | 22 | 16.6 |
| 60 | M | 1.22 | 156 | 91 | 72 | 60 | 45 | 36 | 30 | 24 | 18.1 |
Drop size (ASABE S572): M = Medium, C = Coarse, VC = Very Coarse.
