TeeJet

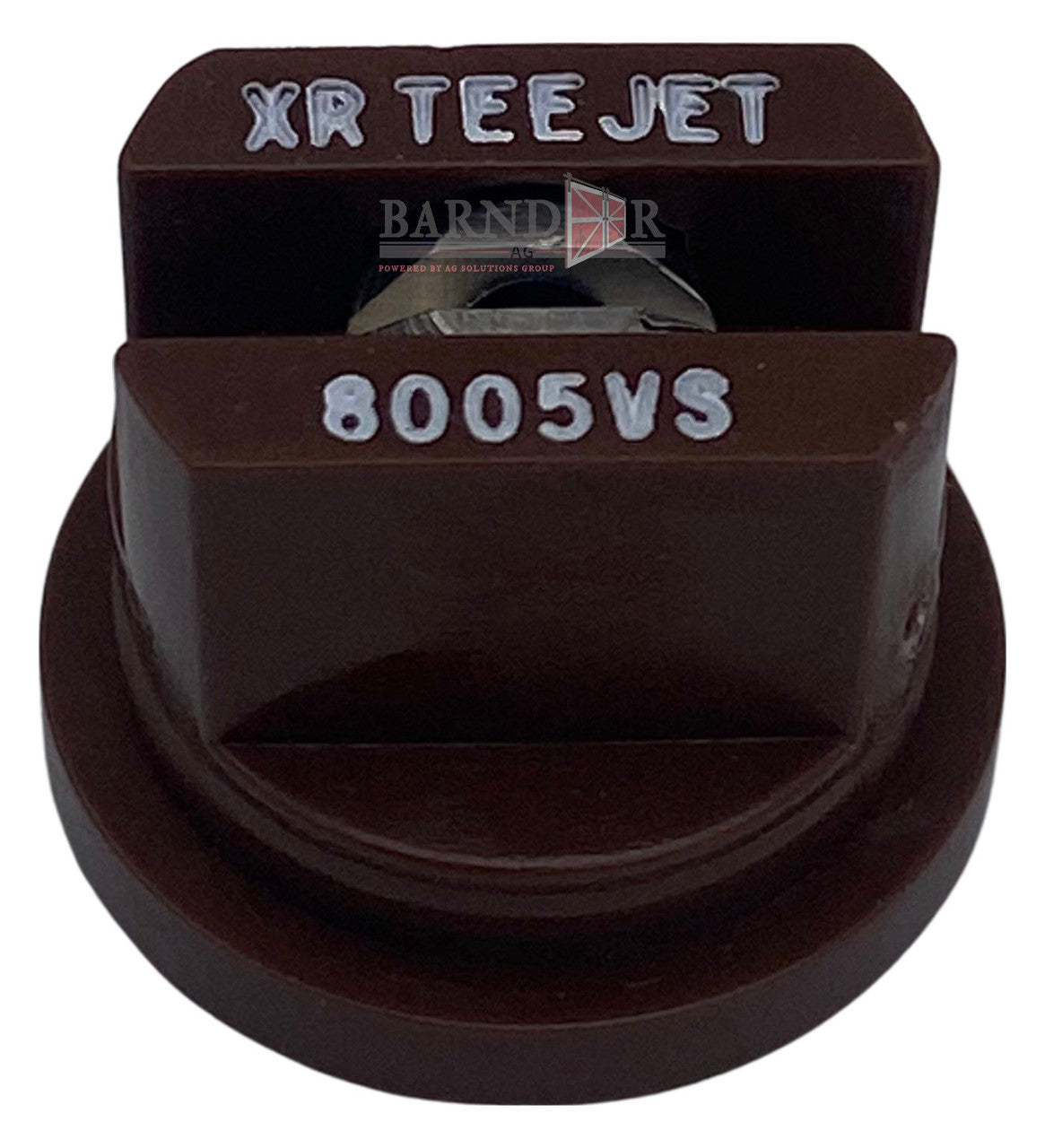

XR8005VS — TeeJet Spray Tip XR
XR8005VS — TeeJet Spray Tip XR
Regular price
$6.05 USD
Regular price
$11.64 USD
Sale price
$6.05 USD
Unit price
/
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “XR8005VS — TeeJet Spray Tip XR” — fitment, alternatives, or what else you need
XR8005VS extended range flat spray tip, 80° spray angle, 0.5 GPM at 40 PSI (brown), stainless steel construction (VisiFlo stainless). General-purpose broadcast flat spray tip for contact herbicides, fungicides, and insecticides, producing medium-to-coarse droplets. For agricultural boom sprayer application.
Application Rates
Capacity and application rates for the XR8005 tip from TeeJet Catalog 51A (rated pressure range 15–60 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 15 | C | 0.31 | 40 | 23 | 18.4 | 15.3 | 11.5 | 9.2 | 7.7 | 6.1 | 4.6 |
| 20 | C | 0.35 | 45 | 26 | 21 | 17.3 | 13.0 | 10.4 | 8.7 | 6.9 | 5.2 |
| 30 | M | 0.43 | 55 | 32 | 26 | 21 | 16.0 | 12.8 | 10.6 | 8.5 | 6.4 |
| 40 | M | 0.50 | 64 | 37 | 30 | 25 | 18.6 | 14.9 | 12.4 | 9.9 | 7.4 |
| 50 | M | 0.56 | 72 | 42 | 33 | 28 | 21 | 16.6 | 13.9 | 11.1 | 8.3 |
| 60 | F | 0.61 | 78 | 45 | 36 | 30 | 23 | 18.1 | 15.1 | 12.1 | 9.1 |
Drop size (ASABE S572): F = Fine, M = Medium, C = Coarse.
