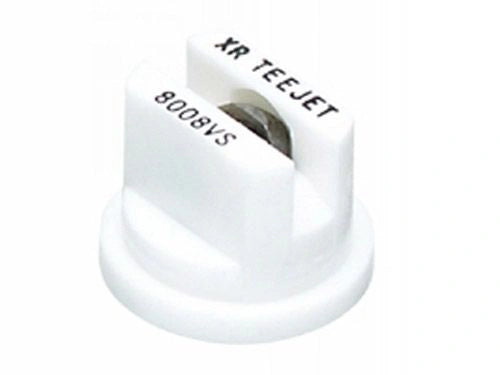

• White XR TeeJet 8008VS spray nozzle with a durable plastic body and precision metal orifice for agricultural spraying.
1 1

TeeJet

XR8008VS — TeeJet Spray Tip XR

XR8008VS — TeeJet Spray Tip XR

$6.05 USD
$11.64 USD $6.05 USD
Sale
Shipping calculated at checkout.
Title

Questions on fitment? Need a different size or quantity?

(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Part: SSXR8008VS — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “XR8008VS — TeeJet Spray Tip XR” — fitment, alternatives, or what else you need

XR8008VS extended range flat spray tip, 80° spray angle, 0.8 GPM at 40 PSI (white), stainless steel construction (VisiFlo stainless). General-purpose broadcast flat spray tip for contact herbicides, fungicides, and insecticides, producing medium-to-coarse droplets. For agricultural boom sprayer application.

Application Rates

Capacity and application rates for the XR8008 tip from TeeJet Catalog 51A (rated pressure range 15–60 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.

PSI Drop size GPM per tip oz/min GPA at MPH
4 5 6 8 10 12 15 20
15 VC 0.49 63 36 29 24 18.2 14.6 12.1 9.7 7.3
20 VC 0.57 73 42 34 28 21 16.9 14.1 11.3 8.5
30 C 0.69 88 51 41 34 26 20 17.1 13.7 10.2
40 M 0.80 102 59 48 40 30 24 19.8 15.8 11.9
50 M 0.89 114 66 53 44 33 26 22 17.6 13.2
60 M 0.98 125 73 58 49 36 29 24 19.4 14.6

Drop size (ASABE S572): M = Medium, C = Coarse, VC = Very Coarse.
