TeeJet
XRC11003-VS — TeeJet Tip/Cap XR
XRC11003-VS — TeeJet Tip/Cap XR
Regular price
$6.95 USD
Regular price
$13.36 USD
Sale price
$6.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “XRC11003-VS — TeeJet Tip/Cap XR” — fitment, alternatives, or what else you need

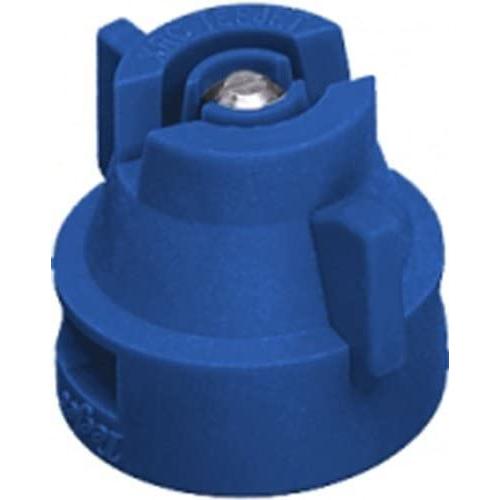

TeeJet XRC11003-VS — TeeJet tip/cap XR.
Details
| Part number | XRC11003-VS |
|---|---|
| Manufacturer | TeeJet Technologies |
| SKU | SSXRC11003-VS |
| Catalogue description | TEEJET TIP/CAP XR |
Expanded from the TeeJet Technologies catalogue listing for this part.
Application Rates
Capacity and application rates for the XRC11003 tip from TeeJet Catalog 51A (rated pressure range 15–60 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 15 | M | 0.18 | 23 | 13.4 | 10.7 | 8.9 | 6.7 | 5.3 | 4.5 | 3.6 | 2.7 |
| 20 | M | 0.21 | 27 | 15.6 | 12.5 | 10.4 | 7.8 | 6.2 | 5.2 | 4.2 | 3.1 |
| 30 | F | 0.26 | 33 | 19.3 | 15.4 | 12.9 | 9.7 | 7.7 | 6.4 | 5.1 | 3.9 |
| 40 | F | 0.30 | 38 | 22 | 17.8 | 14.9 | 11.1 | 8.9 | 7.4 | 5.9 | 4.5 |
| 50 | F | 0.34 | 44 | 25 | 20 | 16.8 | 12.6 | 10.1 | 8.4 | 6.7 | 5.0 |
| 60 | F | 0.37 | 47 | 27 | 22 | 18.3 | 13.7 | 11.0 | 9.2 | 7.3 | 5.5 |
Drop size (ASABE S572): F = Fine, M = Medium.
