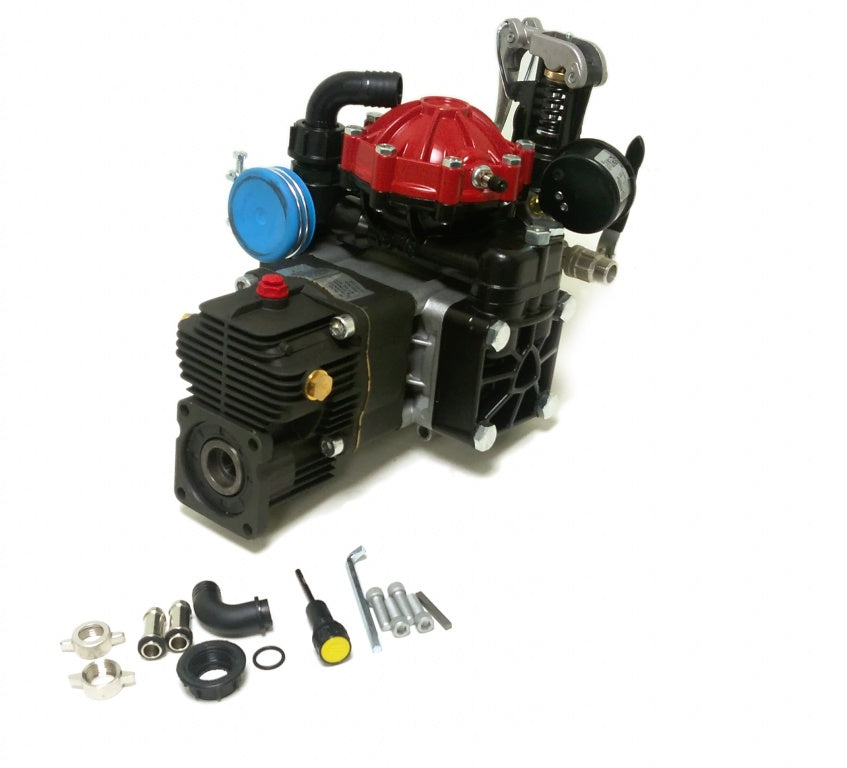

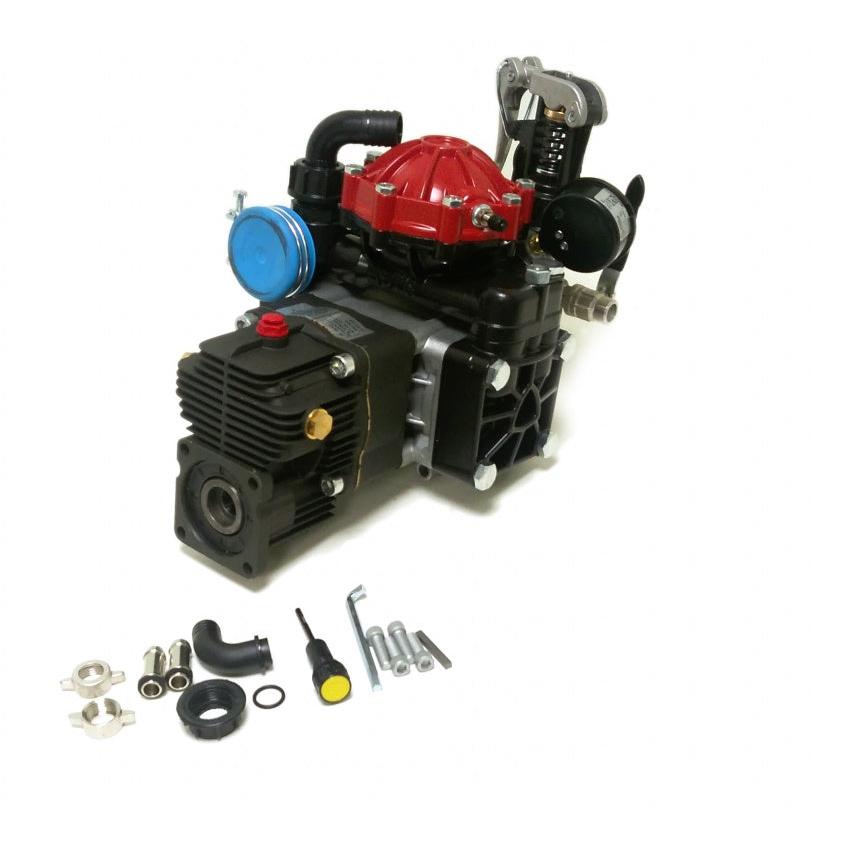

Annovi Reverberi AR30-GR3/4-GCI Diaphragm Pump with Gearbox & GIC40 Regulator, 9.6 GPM / 580 PSI (Replaces Hypro D30GRGI / 9910-D30GRGI)
Annovi Reverberi AR30-GR3/4-GCI Diaphragm Pump with Gearbox & GIC40 Regulator, 9.6 GPM / 580 PSI (Replaces Hypro D30GRGI / 9910-D30GRGI)
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
Replaces the discontinued Hypro D30GRGI (9910-D30GRGI). Hypro no longer makes the 9910 Series D30 diaphragm pumps. The Annovi Reverberi AR30 is the factory replacement, and the AR30-GR3/4-GCI is the D30GRGI equivalent: the pump, AR1636 gearbox and GIC40 regulator, ready to bolt to a gas engine with a 3/4" shaft. Your D30 rebuild kits cross over to AR part numbers (see the cross-reference below).
Not on the shelf? Special orders usually ship in about 2 weeks. Special-order items may be non-returnable. Call (509) 838-2209 and we'll help you match your old pump.
The Annovi Reverberi AR30-GR3/4-GCI Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. It features a hollow 3/4" shaft, delivers up to 9.6 GPM at 580 PSI maximum pressure, and uses plastic-coated aluminum construction for durability and environmental protection.
Repair Kits for This Pump
| If the pump... | What to order |
|---|---|
| Milky oil or spray mix in the crankcase, oil in the tank, or sudden loss of pressure (diaphragm failure) | Diaphragm kit — BlueFlex (standard on this pump): AR43285 · Buna (NBR): AR43282 · Desmopan: AR43283. Then flush and refill the crankcase with AR64532D oil (26 oz). |
| Pressure drops or surges, slow to prime, noisy with good diaphragms (worn valves) | Valve kit AR1917 |
| Weeping between the heads, body or manifold, or resealing during a rebuild | O-ring kit AR1916 |
| Pressure gauge pulses hard | Check the air-chamber pre-charge. The air-chamber diaphragm is included in the BlueFlex and Buna diaphragm kits above. |
Not sure which kit you need? Send a photo of the pump label to sales@spraycenter.com or call (509) 838-2209 and we'll match it before you order.
Specifications
| Flow (GPM) | 9.6 |
|---|---|
| Flow (l/min) | 36.2 |
| Pressure (PSI) | 580 |
| Pressure (bar) | 40 |
| Speed (RPM) | 550 |
| Power (HP) | 2.9 |
| Inlet | 1" |
| Outlet | 1/2" |
| Shaft Type | Hollow |
| Shaft Diameter | 3/4" |
| Diaphragm Count | 2 |
| Diaphragm Material | Blue-Flex |
| O-Ring Material | Buna |
| Head Material | Plastic-Coated Aluminum |
| Weight | 32 lbs |
| Pump Type | Diaphragm Pumps |
| Drive | Gas engine |
| Max Temperature | 140° F |
| Control Unit | GIC40 |
| Gear Box | AR1636 |
| Market | Agriculture |
Hypro D30 to AR Cross-Reference
| Discontinued Hypro part | AR replacement |
|---|---|
| 9910-D30 (D30 pump) | AR30-SP |
| 9910-D30AP-A (D30 with 3/4" shaft) | AR30-SP/A3/4 |
| 9910-D30GRGI (D30 with gearbox & regulator) | AR30-GR3/4-GCI |
| 9910-KIT1724 (Desmopan diaphragm kit) | AR43283 |
| 9910-KIT1704 (1-3/8" female PTO kit) | AR43831 |
| 9910-KIT1640 (gearbox) | AR1636 |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43285 | BlueFlex | Diaphragm Kits |
| AR43283 | Desmopan | Diaphragm Kits |
| AR43282 | Buna | Diaphragm Kits |
| AR1917 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR1916 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
