AR40-GR3/4-GCI
AR40-GR3/4-GCI
Couldn't load pickup availability

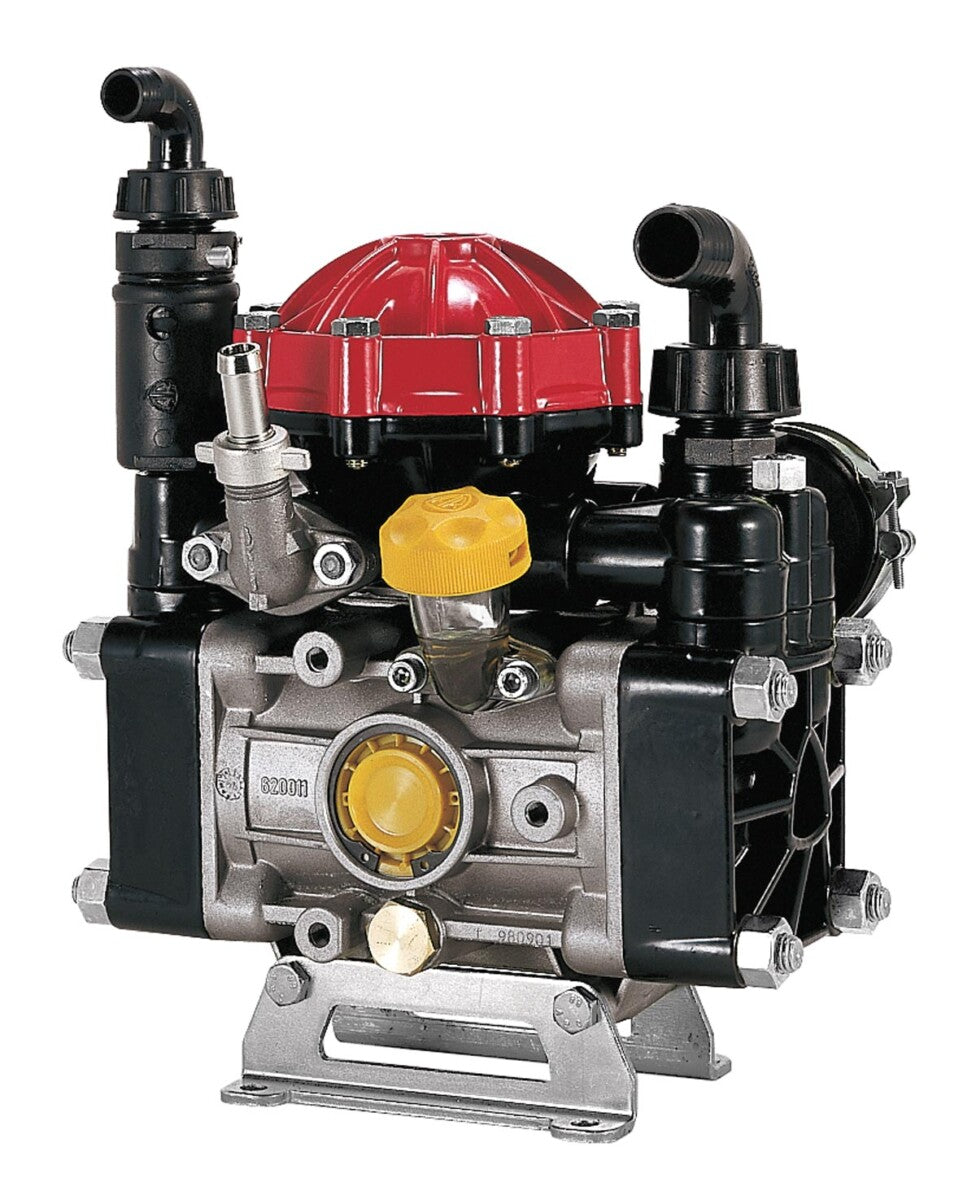

The Annovi Reverberi AR40-GR3/4-GCI Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. With its hollow, 3/4" shaft, this pump connects directly to your power source seamlessly. Delivering a flow rate of up to 12.2 GPM and a maximum pressure of 580 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like plastic-coated aluminum for the pump head, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime. Experience the reliability and efficiency of the Annovi Reverberi AR40-GR3/4-GCI agriculture pump.
Specifications
| Flow (GPM) | 12.2 |
|---|---|
| Flow (l/min) | 46.3 |
| Pressure (PSI) | 580 |
| Pressure (bar) | 40 |
| Speed (RPM) | 550 |
| Shaft Type | Hallow |
| Shaft Diameter | 3/4" |
| Diaphragm Count | 2 |
| Diaphragm Material | Blue-Flex |
| Head Material | Plastic-Coated Aluminum |
| Max water temp | 140° F |
| Weight | 32 lbs |
| Series | Pastic-Coated Aluminum, PCA, Pastic-Coated Aluminum |
| Pump Type | Diaphram Pumps |
| Length (in) | 7.1 |
| Width (in) | 10.47 |
| Height (in) | 11.73 |
| Max Hp | 3.5 |
| Outlet (in) | 1/2" |
| Inlet (in) | 1-1/4" |
| Drive | gas engine |
| O-Ring | buna |
| HP | 3.5 |
| Shaft Size | 3/4" |
| Version | GR3/4-GCI |
| # of Diaphrams | Two |
| Control Unit | GIC40, Mounted_Control_unit |
| Control Unit SKU | GIC40 |
| Gear Box | AR1636 |
| Market | Agriculture |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43285 | BlueFlex | Diaphragm Kits |
| AR43283 | NBR | Diaphragm Kits |
| AR43282 | Desmopan | Diaphragm Kits |
| AR1917 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR1916 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
