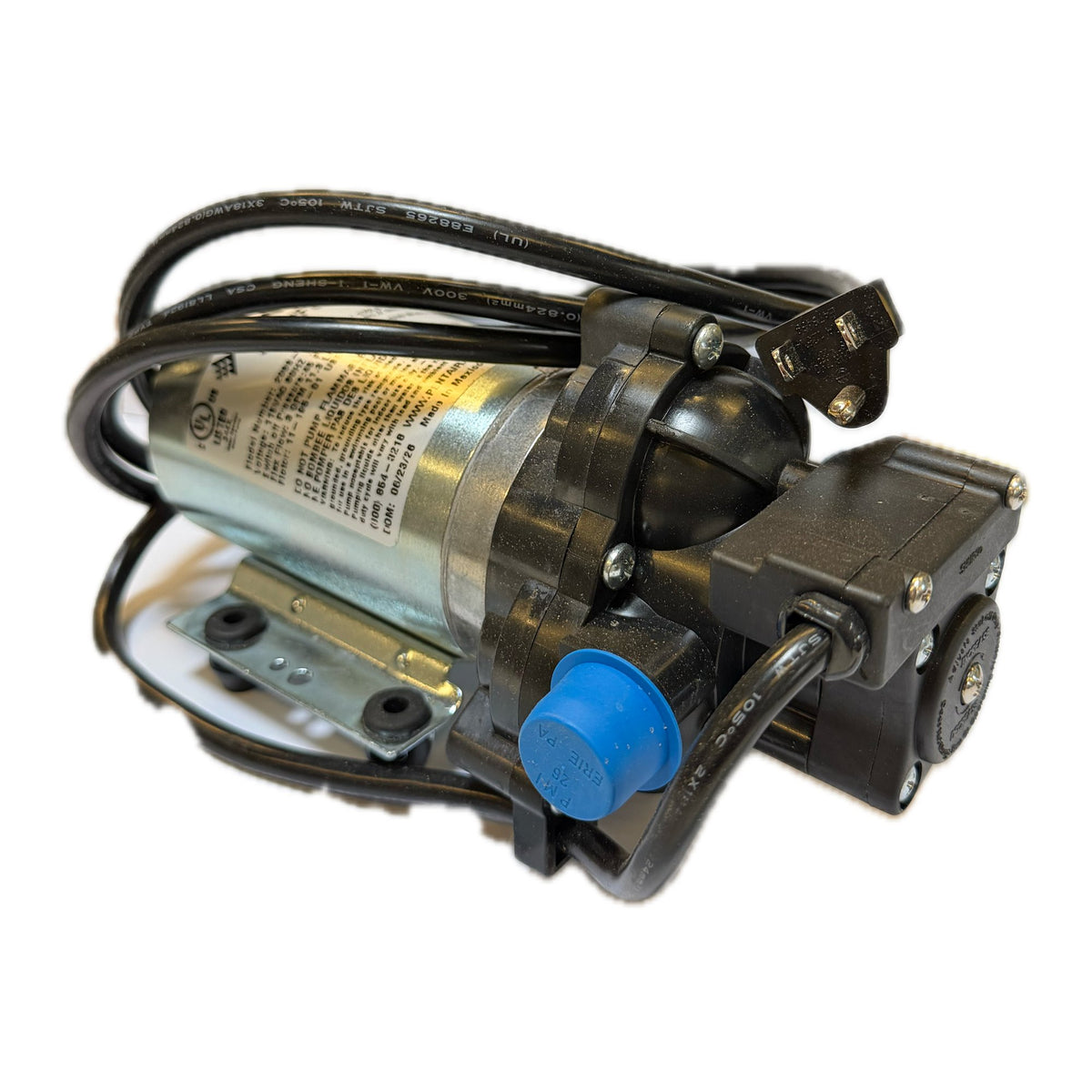

• SHURflo 2088-394-144 115V electric diaphragm pump with power cord
1 1

Hypro

Hypro ShurFlo 2088-394-144 115V Diaphragm Pump, 3.0 GPM, 45 PSI Demand Switch, Viton Valves

Hypro ShurFlo 2088-394-144 115V Diaphragm Pump, 3.0 GPM, 45 PSI Demand Switch, Viton Valves

$234.20 USD
$390.33 USD $234.20 USD
Sale
Shipping calculated at checkout.
Title

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: HY2088-394-144 — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “Hypro ShurFlo 2088-394-144 115V Diaphragm Pump, 3.0 GPM, 45 PSI Demand Switch, Viton Valves” — fitment, alternatives, or what else you need

The 2088-394-144 is a Hypro/SHURflo 2088 Series diaphragm pump — polypropylene housing, 3-chamber diaphragm, Viton valves, Santoprene diaphragm, rated at 3 GPM open flow on 115 VAC with a 6 ft power cord.

Repair Kits for This Pump

If the pump... Kit
Runs but won't prime, pulses, or won't build pressure 94-232-05 valve assembly (Viton)
Leaks back or drains the line when it shuts off 94-237-05 check valve
Lost flow, or fluid weeping from the seam behind the head 94-238-03 diaphragm, lower housing and drive (3.0)
Cracked upper housing 94-231-30 upper housing

Not sure which kit you need? Send a photo of the pump label to sales@spraycenter.com or call (509) 838-2209 and we'll match it before you order.

Specifications

Max flow 3 GPM open flow
Max pressure 40 PSI
Voltage 115 VAC
Max amp draw 0.7 A
Motor Permanent magnet, thermally protected (11-195-01)
Ports 1/2"-14 male parallel thread (MSPT)
Valves Viton
Diaphragm Santoprene (main); Viton switch diaphragm
Housing Polypropylene
Duty Intermittent duty
Power cord 6 ft
Priming Self-priming; horizontal and vertical prime vary with fluid viscosity

Service Parts

Ref. Part No. Description Qty
3 94-237-05 Check valve assembly 1
4 94-231-30 Upper housing 1
5 94-232-05 Bypass/non-bypass valve assembly (Viton) 1
6 94-238-03 Drive / diaphragm assembly 1

Parts and specifications per Hypro / Pentair published service literature.
