Hypro
5059-1310-D011
5059-1310-D011
Regular price
$208.46 USD
Regular price
$347.43 USD
Sale price
$208.46 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

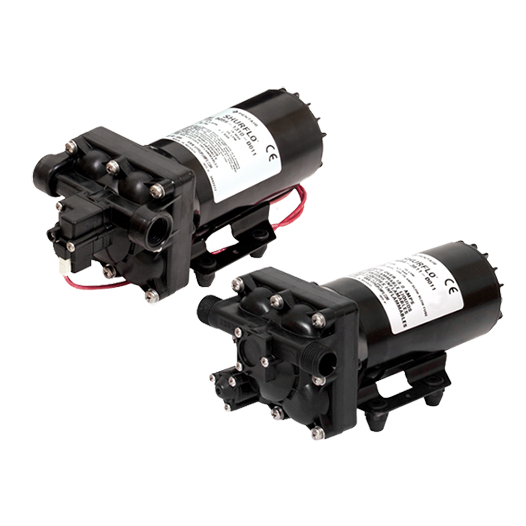

The 5059-1310-D011 is a Hypro/SHURflo 5059 Series high-flow diaphragm pump — polypropylene housing, 3-chamber diaphragm, Viton valves, Santoprene diaphragm, rated at 5.3 GPM open flow with a 60 PSI built-in demand switch on 12 VDC.
Specifications
| Max flow | 5.3 GPM (20.1 l/min) open flow |
|---|---|
| Flow at 40 PSI | 3.8 GPM |
| Pressure switch | Built-in, set at 60 PSI |
| Voltage | 12 VDC, SHURflo sealed motor |
| Max amp draw | 17.0 A |
| Ports | 1/2" NPTF |
| Valves | Viton |
| Diaphragm | Santoprene |
| Housing | Polypropylene |
| Self-priming | Up to 8 ft (2.4 m) |
| Max inlet pressure | 30 PSI (2.1 bar) |
| Check valve cracking pressure | No more than 2 PSI (0.14 bar) |
| Max fluid temperature | 120 F (49 C) with Viton seals |
| Recommended tubing | 1/2" I.D., minimum 18 inches |
| Max fitting torque | 45 in. lbs. (5 Nm) |
| Strainer | 50-mesh recommended |
| Weight | 8 lbs |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 94-910-02 | Switch only | 1 | |
| 94-910-11 | Upper housing assembly | 1 | |
| 94-910-05 | Valve assembly | 1 | |
| 94-910-04 | Drive assembly | 1 | |
| 94-910-10 | Pump head | 1 | |
| 94-910-03 | Check valve | 1 |
Parts and specifications per Hypro manual 911-1051 Rev. C.
