Hypro
5059-1311-D011
5059-1311-D011
Regular price
$218.88 USD
Regular price
$364.80 USD
Sale price
$218.88 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

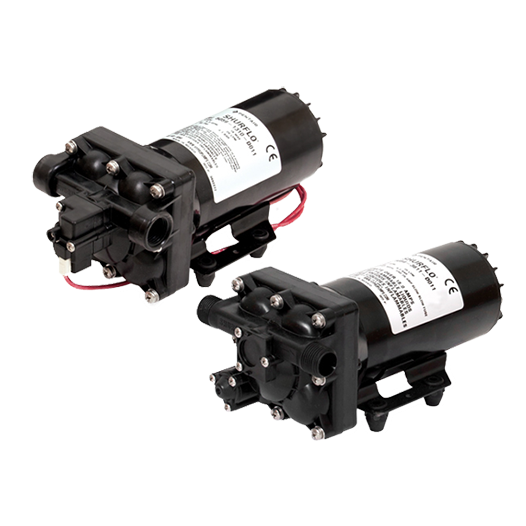

The 5059-1311-D011 is a Hypro/SHURflo 5000 series 12-volt diaphragm pump — automatic demand with built-in pressure switch, rated at 5.3 GPM and 60 PSI.
Specifications
| Max flow | 5.3 GPM (20.1 l/min) |
|---|---|
| Max pressure | 60 PSI (4.14 bar) |
| Pressure switch | Automatic demand, set at 60 PSI |
| Voltage | 12 VDC |
| Max draw | 17.0 amps |
| Ports | 1/2" NPSM |
| Diaphragm | Santoprene |
| Valves | Viton |
| Priming | Self-priming to 8 ft (2.4 m) |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 94-910-02 | Switch only (pressure switch) | 1 |
| 2 | 94-910-01 | Upper Housing Assembly (with switch) | 1 |
| 3 | 94-910-05 | Valve Assembly | 1 |
| 4 | 94-910-04 | Drive Assembly | 1 |
| 6 | 94-910-00 | Pump Head (complete) | 1 |
| 7 | 94-910-03 | Check Valve | 1 |
Parts per Hypro manual 911-1051; specifications per SHURflo Form 483 (5000 Series).
