Hypro 9203C Cast Iron Centrifugal Pump, Pedestal Mount, 5/8" Shaft, 140 GPM / 170 PSI
Hypro 9203C Cast Iron Centrifugal Pump, Pedestal Mount, 5/8" Shaft, 140 GPM / 170 PSI
Regular price
$517.97 USD
Regular price
$863.29 USD
Sale price
$517.97 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “Hypro 9203C Cast Iron Centrifugal Pump, Pedestal Mount, 5/8" Shaft, 140 GPM / 170 PSI” — fitment, alternatives, or what else you need

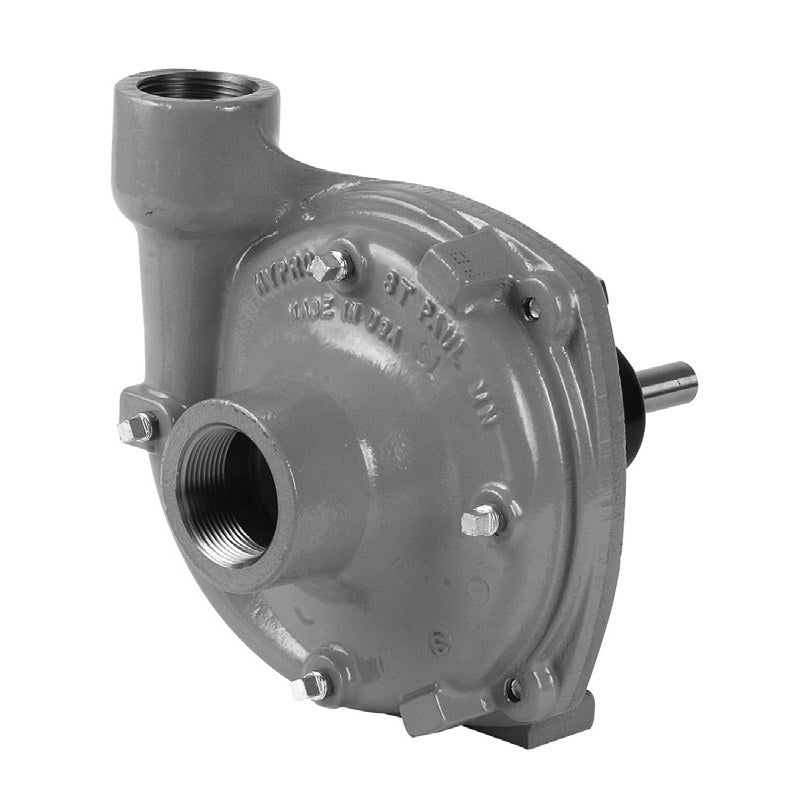

The 9203C is a Hypro 9200 series centrifugal pump — cast iron, pedestal mount, 5/8" solid shaft, rated at 140 GPM and 170 PSI at up to 6000 RPM.
Fluid dripping from behind the casing or out by the slinger means the seal is done: order the seal kit. A rough or noisy shaft means bearings. Not sure which kit you need? Send a photo of the pump label to sales@spraycenter.com or call (509) 838-2209 and we'll match it before you order.
Specifications
| Max flow | 140 GPM (530 l/min) |
|---|---|
| Max pressure | 170 PSI (11.7 bar) |
| Max speed | 6000 RPM |
| Inlet port | 1-1/2" NPT |
| Outlet port | 1-1/4" NPT |
| Shaft | 5/8" solid |
| Dry weight | 19 lbs (8.6 kg) |
| Housing material | Cast iron |
| Seal | Ceramic Silicon Carbide |
| Rotation | Clockwise viewed from the front of the pump |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1B | 2406-0002 | Drain Plug | 1 |
| 2 | 0150-9000C | Pump Casting (Cast Series) | 1 |
| 4 | 0401-9100P | Impeller (Cast Series) | 1 |
| 4 | 0407-9303P | Impeller (GTX) | 1 |
| 6 | 1720-0083 | O-Ring | 1 |
| 7 | 0750-9200C3 | Mounting Flange (Cast Series) | 1 |
| 8 | 2210-0020 | Bolt (Cast Series) | 4 |
| 9 | 1610-0015 | Key (Cast Series) | 1 |
| 10 | 3430-0844 | Shaft | 1 |
| 11 | 1410-0056 | Slinger Ring | 1 |
| 12 | 2000-0010 | Ball Bearing | 2 |
| 13 | 1820-0013 | Bearing Retainer | 1 |
| 15 | 2406-0001 | Pipe Plug | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| 3430-0332 | Standard Seal Kit (cast) - gasket (not shown), Viton mechanical seal (ref 5), o-ring (ref 6) |
| 3430-0589 | Silicon Carbide Seal Kit - mechanical seal (ref 5), o-ring (ref 6) |
Parts and specifications per Hypro manual L-1555 Rev. C.
