Hypro

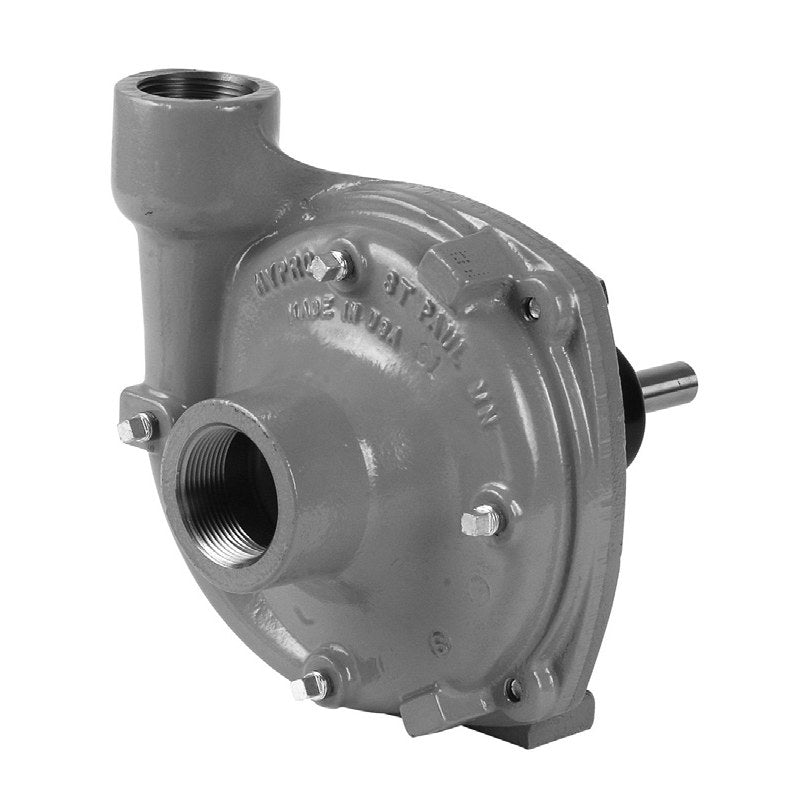

9203C-R — Pump Assembly
9203C-R — Pump Assembly
Regular price
$530.58 USD
Regular price
$884.30 USD
Sale price
$530.58 USD
Unit price
/
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “9203C-R — Pump Assembly” — fitment, alternatives, or what else you need
The 9203C-R is a Hypro 9200 series centrifugal pump — cast iron, pedestal mount, reverse (counter-clockwise) rotation, rated at 140 GPM and 170 PSI, counter-clockwise rotation.
Specifications
| Max flow | 140 GPM (530 l/min) |
|---|---|
| Max pressure | 170 PSI (11.7 bar) |
| Max speed | 6000 RPM |
| Inlet port | 1-1/2" NPT |
| Outlet port | 1-1/4" NPT |
| Shaft | 5/8" solid |
| Dry weight | 19 lbs (8.6 kg) |
| Housing material | Cast iron |
| Seal | Ceramic Silicon Carbide |
| Rotation | Counter-clockwise viewed from the front of the pump |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1B | 2406-0002 | Drain Plug | 1 |
| 2A | 0152-9000C | Pump Casting (Reverse) (Cast Series) | 1 |
| 4A | 0403-9100P | Impeller (Reverse) (Cast Series) | 1 |
| 6 | 1720-0083 | O-Ring | 1 |
| 7 | 0750-9200C3 | Mounting Flange (Cast Series) | 1 |
| 8 | 2210-0020 | Bolt (Cast Series) | 4 |
| 9 | 1610-0015 | Key (Cast Series) | 1 |
| 10 | 3430-0844 | Shaft | 1 |
| 11 | 1410-0056 | Slinger Ring | 1 |
| 12 | 2000-0010 | Ball Bearing | 2 |
| 13 | 1820-0013 | Bearing Retainer | 1 |
| 15 | 2406-0001 | Pipe Plug | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| 3430-0332 | Standard Seal Kit (cast) - gasket (not shown), Viton mechanical seal (ref 5), o-ring (ref 6) |
| 3430-0589 | Silicon Carbide Seal Kit - mechanical seal (ref 5), o-ring (ref 6) |
Parts and specifications per Hypro manual L-1555 Rev. C.
