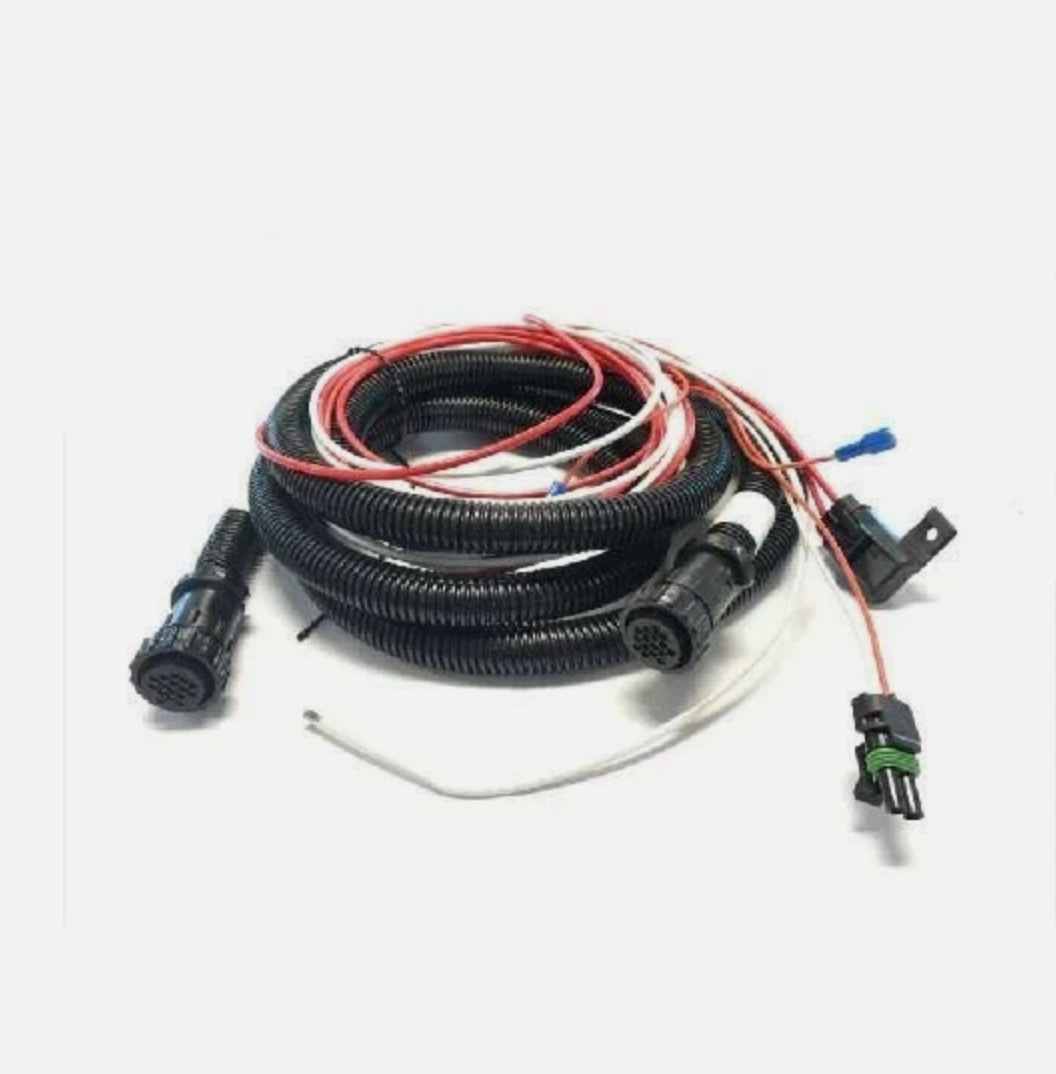

Raven SCS 440 / 450 Console Cable, 16-Pin (Custom Built) — Console Through the Cab to the Tractor Hitch

The SCE 16-Pin SCS 440/450 Console Cable is a custom-built harness for the Raven SCS 440 and SCS 450 rate controllers. It plugs into the 16-pin connector on the console, runs through the cab, and ends at the tractor hitch, where it meets the 16-Pin SCS 440/450 Machine Cable that carries on to the sprayer. Thousands of these consoles are still in the field, and the original harnesses are now twenty-plus years old: when sections start dropping out, the rate hunts, or the console loses the flow meter while the meter itself tests good, a chafed, pinched or corroded cable is the usual cause. We build it to your tractor so the run fits without splices.

Custom built to spec in our Spokane, WA shop. Tell us the console, the tractor and the run lengths and we build it to fit; use the custom cable request form or call (509) 838-2209. Need a longer run? Add cable length per foot.

Works with

• Raven SCS 440 console
• Raven SCS 450 console

Related

16-Pin SCS 440/450 Machine Cable (hitch to the controls) · Cable Check Out (bench test) · Raven rate reads zero? Check speed, boom sense, then flow · intermittent faults and Deutsch connectors

SCS 440 / 450 16-pin console connector pinout

This is the 16-pin round connector on the back of the Raven SCS 440 and SCS 450 consoles, as wired in our console and machine cables. Pins 7, 8 and 9 carry booms 4–6 on the SCS 450 and are empty on a 440. Use it with a meter to check continuity end to end, or to confirm the right wire is reaching a valve or the flow meter.

SCS 460 differences

The SCS 460 adds a pressure sensor input on the same 16-pin connector. On a 460, pins 8, 9 and 10 carry the pressure sensor instead of booms 5–6 and remote master, following the same three-wire convention as the flow and speed cables, and pin 15 is used.

Flow meter and speed sensor 3-pin connectors

Both the flow meter and the speed sensor use the same 3-pin round connector (flow is the female lock-nut end on the console side; speed is the male end). Power is +5 V from the console; signal is a pulse the console counts.

Pinout from Spray Center Electronics' own cable drawings (16pin440, rev 1.0). Older Raven cables use white for the signal wire; newer ones use red. If your cable has been repaired, verify colors with a meter before trusting them.
