Raven SCS 440 / 450 Machine Cable, 16-Pin (Custom Built) — Tractor Hitch to Boom Valves, Control Valve and Flow Meter
Raven SCS 440 / 450 Machine Cable, 16-Pin (Custom Built) — Tractor Hitch to Boom Valves, Control Valve and Flow Meter
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

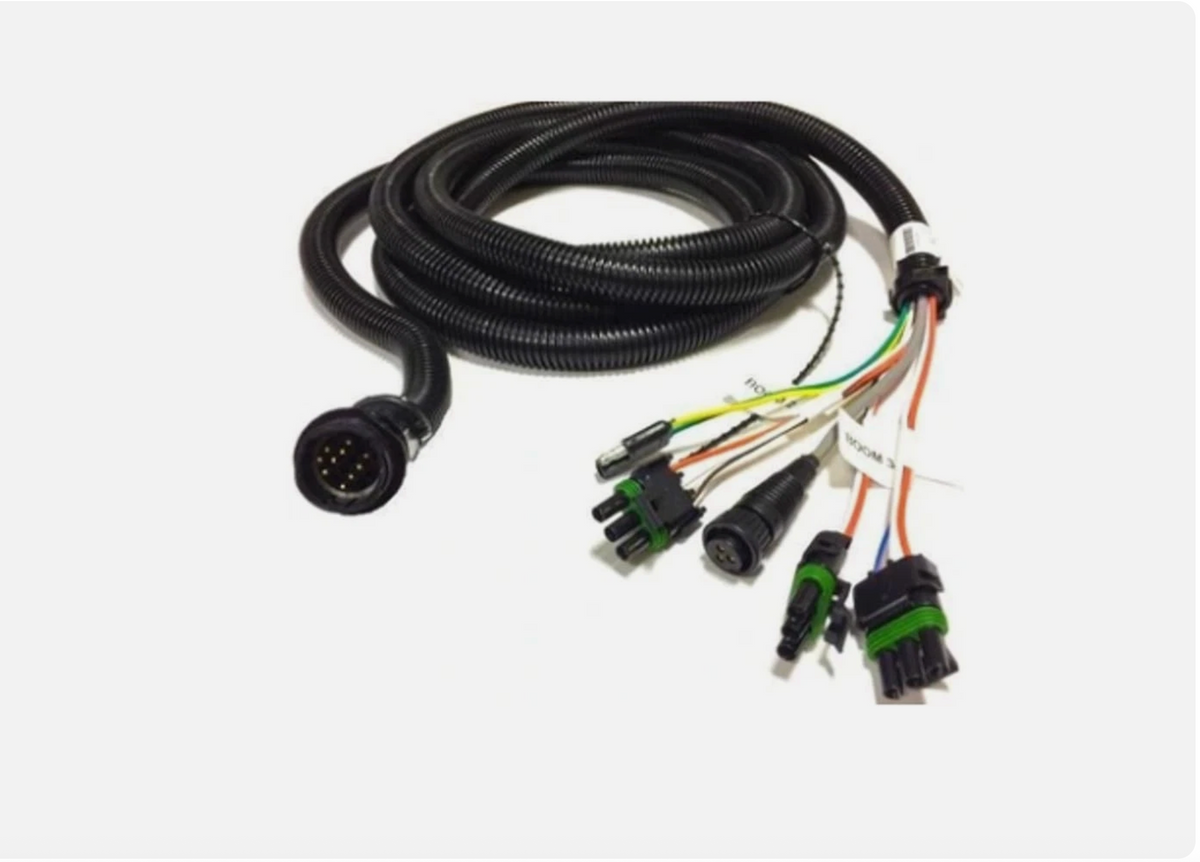

The SCE 16-Pin SCS 440/450 Machine Cable is the implement-side harness for Raven SCS 440 and SCS 450 rate controllers. It picks up at the tractor hitch, where the 16-Pin SCS 440/450 Console Cable ends, and runs back along the sprayer to the boom shutoff valves, the control valve and the flow meter. It lives outside the cab, so it is the cable that gets dragged at the hitch, kinked on tight turns and soaked in fertilizer, and the one that usually fails first. Order it on its own when the trailer half is damaged, or with the console cable for a complete new run. Built to the length of your boom and trailer.
Custom built to spec in our Spokane, WA shop. Tell us the console, the tractor and the run lengths and we build it to fit; use the custom cable request form or call (509) 838-2209. Need a longer run? Add cable length per foot.
Works with
- Raven SCS 440 and SCS 450 systems
Related
16-Pin SCS 440/450 Console Cable (console to hitch) · Cable Check Out (bench test) · RFM flow meter reading erratic · troubleshooting electric boom valves
SCS 440 / 450 16-pin console connector pinout
This is the 16-pin round connector on the back of the Raven SCS 440 and SCS 450 consoles, as wired in our console and machine cables. Pins 7, 8 and 9 carry booms 4–6 on the SCS 450 and are empty on a 440. Use it with a meter to check continuity end to end, or to confirm the right wire is reaching a valve or the flow meter.
| Pin | Wire color | Function |
|---|---|---|
| 1 | White | Ground |
| 2 | Brown | Boom 2 |
| 3 | Yellow | Increase (control valve) |
| 4 | Green | Decrease (control valve) |
| 5 | Blue | Boom 3 |
| 6 | Black | Boom 1 |
| 7 | Black/White | Boom 4 (SCS 450 only) |
| 8 | Brown/White | Boom 5 (SCS 450); pressure sensor signal on SCS 460 |
| 9 | Blue/White | Boom 6 (SCS 450); pressure sensor ground on SCS 460 |
| 10 | Orange/White | Remote master (SCS 440 / 450); pressure sensor power on SCS 460 |
| 11 | Shield | Flow meter ground |
| 12 | Black | Flow meter power (+5 V) |
| 13 | White (red on newer cables) | Flow meter signal |
| 14 | Orange | Remote power |
| 15 | White/Black (SCS 460) | Not used on SCS 440 / 450; used on SCS 460 |
| 16 | Red | Console power (+12 V) |
SCS 460 differences
The SCS 460 adds a pressure sensor input on the same 16-pin connector. On a 460, pins 8, 9 and 10 carry the pressure sensor instead of booms 5–6 and remote master, following the same three-wire convention as the flow and speed cables, and pin 15 is used.
| Pin | Wire color | Function on SCS 460 |
|---|---|---|
| 8 | Red | Pressure sensor signal |
| 9 | Shield | Pressure sensor ground |
| 10 | Black | Pressure sensor power |
| 15 | White/Black | SCS 460 only |
Flow meter and speed sensor 3-pin connectors
Both the flow meter and the speed sensor use the same 3-pin round connector (flow is the female lock-nut end on the console side; speed is the male end). Power is +5 V from the console; signal is a pulse the console counts.
| Connector pin | Marking | Wire | Function |
|---|---|---|---|
| + | PWR | Black | +5 V power from the console |
| − | GND | Shield / drain | Ground |
| S | SIGNAL | White (red on newer cables) | Pulse signal to the console |
Pinout from Spray Center Electronics' own cable drawings (16pin440, rev 1.0). Older Raven cables use white for the signal wire; newer ones use red. If your cable has been repaired, verify colors with a meter before trusting them.
Details
| Product | 16-Pin SCS 440/450 Machine Cable |
|---|---|
| Connector | 16-pin, Raven SCS 440 / 450 |
| Runs | Tractor hitch → boom shutoff valves, control valve, flow meter |
| Build | Custom length and routing, built to order |
| Built by | Spray Center Electronics, Spokane, WA |
