Raven Switch Pro 37-Pin Console Cable (Custom Built) — Envizio Pro / Viper 4 / Viper 4+ Console to Tractor Hitch

Raven Switch Pro 37-Pin Console Cable (Custom Built) — Envizio Pro / Viper 4 / Viper 4+ Console to Tractor Hitch

$428.00 USD
$428.00 USD
Sale
Shipping calculated at checkout.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: SCESPTRACCBL — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “Raven Switch Pro 37-Pin Console Cable (Custom Built) — Envizio Pro / Viper 4 / Viper 4+ Console to Tractor Hitch” — fitment, alternatives, or what else you need

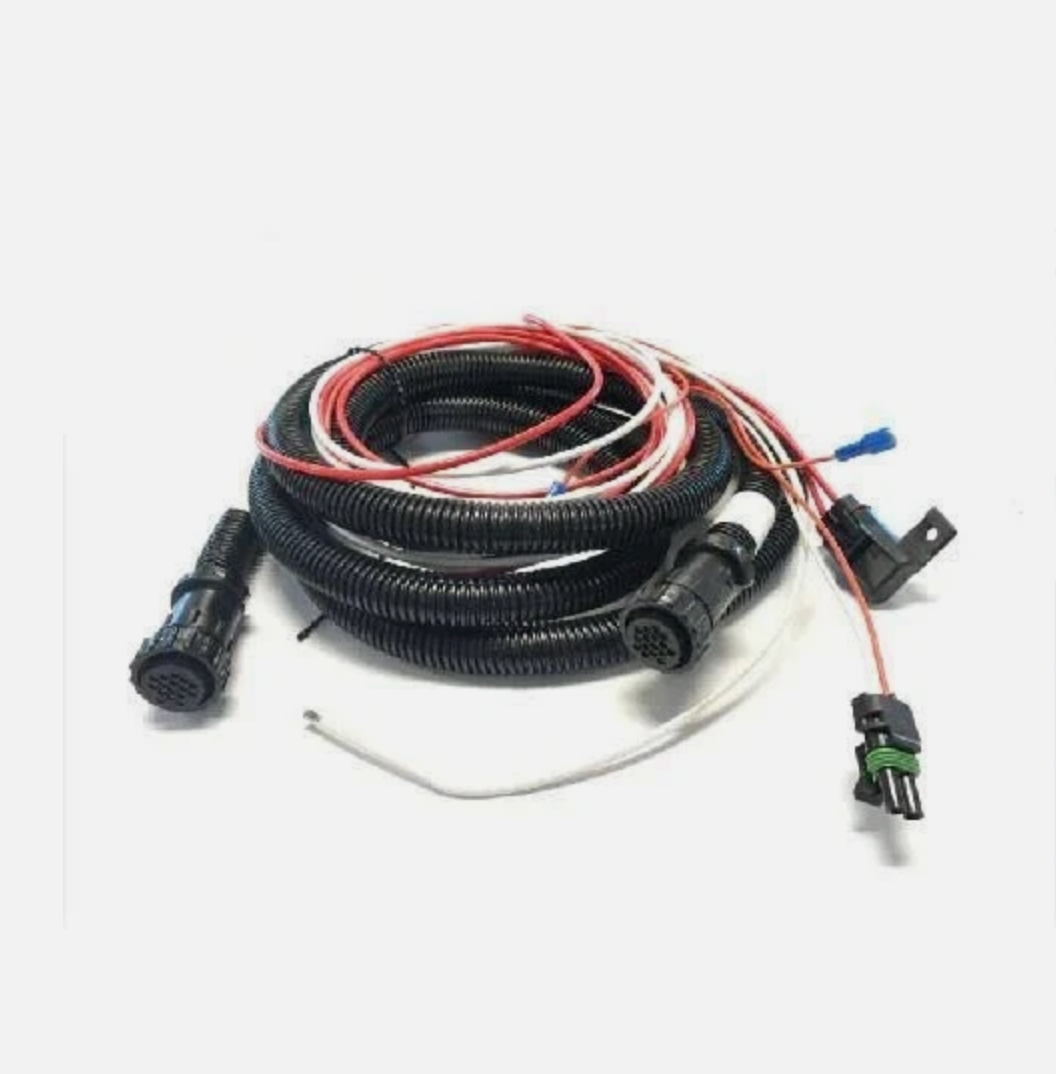

The SCE 37-Pin Switch Pro Console Cable is a custom-built harness for Raven Switch Pro systems. It connects the Raven Switch Pro and your console (Envizio Pro, Viper 4 or Viper 4+) at the front of the cab, runs through the cab, and ends at the tractor hitch, where it meets the implement side of the system. It is the in-cab half of the 37-pin Switch Pro cabling; the 37-Pin Switch Pro Machine Cable carries on from the hitch to the sprayer. Order it when the factory cable has been pinched in a door, chafed through under the cab, or when you are moving a Switch Pro to a different tractor and need the run to fit.

Custom built to spec in our Spokane, WA shop. Tell us the console, the tractor and the run lengths and we build it to fit; use the custom cable request form or call (509) 838-2209. Need a longer run? Add cable length per foot.

Works with

  • Raven Switch Pro with an Envizio Pro console
  • Raven Switch Pro with a Viper 4 or Viper 4+ console

Related

37-Pin Switch Pro Machine Cable · Raven 117-0171-181 Switch Pro to Viper Pro mounting bracket · Cable Check Out (bench test) · intermittent faults and Deutsch connectors

Switch Pro 37-pin (J1) console connector pinout

This is the 37-pin connector on the Raven Switch Pro harness, as wired in our console and machine cables. The wire number on the drawing matches the pin number, so wire 28A is pin 28. The harness breaks out into six shielded sensor cables: CBL1 speed, CBL2 serial, CBL3 flow 2, CBL4 flow 1, CBL5 pressure 1, CBL6 pressure 2. Use it to check continuity end to end, to find which pin a dead boom section rides on, or to confirm power and ground before condemning the Switch Pro.

KEY Pin 4 — Black 18 ga — Boom 1 4 Pin 3 — Orange 14 ga — +12 V switched 3 Pin 2 — Orange/White 14 ga — Remote master 2 Pin 1 — White 14 ga — Ground (−BATT) 1 Pin 9 — Blue/White 18 ga — Boom 6 9 Pin 8 — Brown/White 18 ga — Boom 5 8 Pin 7 — Black/White 18 ga — Boom 4 7 Pin 6 — Blue 18 ga — Boom 3 6 Pin 5 — Brown 18 ga — Boom 2 5 Pin 15 — Green 18 ga — Decrease 15 Pin 14 — Violet 18 ga — Fan signal 14 Pin 13 — Pink 18 ga — Boom 10 13 Pin 12 — White/Blue 18 ga — Boom 9 12 Pin 11 — White/Brown 18 ga — Boom 8 11 Pin 10 — White/Black 18 ga — Boom 7 10 Pin 22 — Shielded black 20 ga — Flow 2 +5 V (CBL3) 22 Pin 21 — Shield drain — Signal ground: flow 1, flow 2, speed, serial 21 Pin 20 — Shielded green 22 ga — Serial DTR (CBL2) 20 Pin 19 — Shielded black 22 ga — Serial TX (CBL2) 19 Pin 18 — Shielded white 22 ga — Serial CTS (CBL2) 18 Pin 17 — Shielded red 22 ga — Serial RX (CBL2) 17 Pin 16 — Yellow 18 ga — Increase 16 Pin 28 — Shielded red 20 ga — Flow 1 signal (CBL4) 28 Pin 27 — Shielded red 20 ga — Speed signal (CBL1) 27 Pin 26 — Shielded black 20 ga — Speed +5 V (CBL1) 26 Pin 25 — Shielded black 20 ga — Flow 1 +5 V (CBL4) 25 Pin 24 — White/Green 18 ga — Bin level signal 24 Pin 23 — Shielded white 20 ga — Flow 2 signal (CBL3) 23 Pin 33 — Green 16 ga — CAN low 33 Pin 32 — Yellow 16 ga — CAN high 32 Pin 31 — Shielded red 20 ga — Pressure 1 signal (CBL5) 31 Pin 30 — Shielded black 20 ga — Pressure 1 +12 V (CBL5) 30 Pin 29 — Shield drain — Pressure 1 and 2 ground 29 Pin 37 — Red 12 ga — +BATT, 30 A fuse (F2) 37 Pin 36 — Red 14 ga — +BATT, 15 A fuse (F1) 36 Pin 35 — Shielded white 20 ga — Pressure 2 signal (CBL6) 35 Pin 34 — Shielded black 20 ga — Pressure 2 +12 V (CBL6) 34 Pin 1 — White 14 ga Ground (−BATT) Pin 2 — Orange/White 14 ga Remote master Pin 3 — Orange 14 ga +12 V switched Pin 4 — Black 18 ga Boom 1 Pin 5 — Brown 18 ga Boom 2 Pin 6 — Blue 18 ga Boom 3 Pin 7 — Black/White 18 ga Boom 4 Pin 8 — Brown/White 18 ga Boom 5 Pin 9 — Blue/White 18 ga Boom 6 Pin 10 — White/Black 18 ga Boom 7 Pin 11 — White/Brown 18 ga Boom 8 Pin 12 — White/Blue 18 ga Boom 9 Pin 13 — Pink 18 ga Boom 10 Pin 14 — Violet 18 ga Fan signal Pin 15 — Green 18 ga Decrease Pin 16 — Yellow 18 ga Increase Pin 17 — Shielded red 22 ga Serial RX (CBL2) Pin 18 — Shielded white 22 ga Serial CTS (CBL2) Pin 19 — Shielded black 22 ga Serial TX (CBL2) Pin 20 — Shielded green 22 ga Serial DTR (CBL2) Pin 21 — Shield drain Signal ground: flow 1, flow 2, speed, serial Pin 22 — Shielded black 20 ga Flow 2 +5 V (CBL3) Pin 23 — Shielded white 20 ga Flow 2 signal (CBL3) Pin 24 — White/Green 18 ga Bin level signal Pin 25 — Shielded black 20 ga Flow 1 +5 V (CBL4) Pin 26 — Shielded black 20 ga Speed +5 V (CBL1) Pin 27 — Shielded red 20 ga Speed signal (CBL1) Pin 28 — Shielded red 20 ga Flow 1 signal (CBL4) Pin 29 — Shield drain Pressure 1 and 2 ground Pin 30 — Shielded black 20 ga Pressure 1 +12 V (CBL5) Pin 31 — Shielded red 20 ga Pressure 1 signal (CBL5) Pin 32 — Yellow 16 ga CAN high Pin 33 — Green 16 ga CAN low Pin 34 — Shielded black 20 ga Pressure 2 +12 V (CBL6) Pin 35 — Shielded white 20 ga Pressure 2 signal (CBL6) Pin 36 — Red 14 ga +BATT, 15 A fuse (F1) Pin 37 — Red 12 ga +BATT, 30 A fuse (F2) Socket (female) housing, viewed from the mating face · hover or tap a pin
Pin Wire Function
1 White 14 ga Ground (−BATT)
2 Orange/White 14 ga Remote master
3 Orange 14 ga +12 V switched
4 Black 18 ga Boom 1
5 Brown 18 ga Boom 2
6 Blue 18 ga Boom 3
7 Black/White 18 ga Boom 4
8 Brown/White 18 ga Boom 5
9 Blue/White 18 ga Boom 6
10 White/Black 18 ga Boom 7
11 White/Brown 18 ga Boom 8
12 White/Blue 18 ga Boom 9
13 Pink 18 ga Boom 10
14 Violet 18 ga Fan signal
15 Green 18 ga Decrease (control valve)
16 Yellow 18 ga Increase (control valve)
17 Shielded cable, red 22 ga Serial RX (CBL2)
18 Shielded cable, white 22 ga Serial CTS (CBL2)
19 Shielded cable, black 22 ga Serial TX (CBL2)
20 Shielded cable, green 22 ga Serial DTR (CBL2)
21 Shield / drain Signal ground: flow 1, flow 2, speed and serial shields all land here
22 Shielded cable, black 20 ga Flow 2 +5 V (CBL3)
23 Shielded cable, white 20 ga Flow 2 signal (CBL3)
24 White/Green 18 ga Bin level signal
25 Shielded cable, black 20 ga Flow 1 +5 V (CBL4)
26 Shielded cable, black 20 ga Speed +5 V (CBL1)
27 Shielded cable, red 20 ga Speed signal (CBL1)
28 Shielded cable, red 20 ga Flow 1 signal (CBL4)
29 Shield / drain Pressure 1 and pressure 2 ground
30 Shielded cable, black 20 ga Pressure 1 +12 V (CBL5)
31 Shielded cable, red 20 ga Pressure 1 signal (CBL5)
32 Yellow 16 ga CAN high
33 Green 16 ga CAN low
34 Shielded cable, black 20 ga Pressure 2 +12 V (CBL6)
35 Shielded cable, white 20 ga Pressure 2 signal (CBL6)
36 Red 14 ga +BATT (fused 15 A, F1)
37 Red 12 ga +BATT (fused 30 A, F2)

Pinout from the Raven Switch Pro harness wiring diagram as built by Spray Center Electronics. Shielded-cable drains (pins 21 and 29) are grounds, not signal wires: a shield that reads open to pin 21 will make a flow or speed sensor read erratically even though the signal wire tests good.

Details

Product 37-Pin Switch Pro Console Cable
Connector 37-pin, Raven Switch Pro
Runs Console / Switch Pro → through cab → tractor hitch
Build Custom length and routing, built to order
Built by Spray Center Electronics, Spokane, WA
